Tesla Certified Charger Installer in Los Angeles

Tesla Energy Certified

Certified by Tesla Energy for Wall Connector Installation

The Tesla Energy Certified Installer designation identifies professionals who have completed Tesla Energy training, hold deep technical knowledge of Tesla Energy products, and deliver the highest-quality installations for Tesla customers. LED Guys holds this certification for the Tesla Wall Connector and Universal Wall Connector.

Wall Connector Certified Installer

Certified to install the Tesla Wall Connector and Universal Wall Connector to Tesla Energy standards — correct conductor sizing, commissioning through the Tesla One app, Wi-Fi setup, firmware updates, access control configuration, and Power Sharing for multi-vehicle sites. Wall Connector installers configure setup within the Tesla One app by scanning the QR code on the Quickstart Guide, setting breaker rating and output amperage, connecting to Wi-Fi, and registering the unit so the customer can access charging stats, scheduled charging, and troubleshooting tools in the Tesla app. Learn more: Installing a Wall Connector.

Wall Connector Power Management

Tesla's Wall Connector includes three power management features that provide the fastest charging rate while avoiding expensive electrical upgrades. Static Power Management lets the installer select from several power levels to match your panel's available capacity. Dynamic Power Management uses a Tesla-approved power meter to adjust charge rate in real time based on your home's electrical usage — when a dryer and water heater are running, charging slows; at night when loads drop, charging speeds up automatically. Group Power Management lets up to six Wall Connectors share power on a single circuit, ideal for multi-vehicle households and commercial sites. Learn more: Wall Connector Power Management.

About LED Guys

Los Angeles' Tesla Certified Charger Installer

Jorge at LED Guys is a C10 licensed contractor (License #1137497) based in Van Nuys and a Tesla Energy Certified Installer for the Tesla Wall Connector and Universal Wall Connector. When you search for a Tesla charger installer near you in Los Angeles, that certification matters: it means your installer completed Tesla's own training program, installs to Tesla Energy specifications, and commissions the charger correctly in the Tesla app — not just wires it to a breaker.

Los Angeles homes range from 1920s Spanish bungalows in Los Feliz with original 100-amp panels to new construction in Playa Vista with 200-amp service. Jorge performs every load calculation to NEC Article 220 standards before recommending a circuit size, so your Wall Connector runs at its full 48A rated output without overloading the panel. When a panel upgrade is needed, LED Guys performs the full 200A service upgrade and coordinates with LADWP as part of the same permitted project.

Every Tesla charger installation is permitted through the Los Angeles Department of Building and Safety before work begins, and every job is done by Jorge personally — no subcontractors, no bait-and-switch quotes. You get a written fixed-price estimate, a permitted installation, and final inspection sign-off.

Response Time 20–30 min across the Valley from Van Nuys

Permit Authority LADBS · LA County · City of Los Angeles

Service Area Greater LA — 6641 Kester Ave, Van Nuys, CA 91405

Emergency 24/7 — Zero Overtime Charges

Estimate Written — Fixed-Price — Same Day

Charging Options

Mobile Connector or Wall Connector — Which Is Right for You?

Level 1 — Mobile Connector on 120V

Standard household outlet

Speed 3–5 miles of range per hour of charging

Equipment Tesla Mobile Connector with NEMA 5-15 adapter — no new wiring required

Best For Short daily commutes under 30 miles, secondary vehicles, or renters

Cost $0 if an outlet is already present / $150–$300 to add a dedicated outlet

Overnight Charge Restores 30–40 miles — sufficient for light daily use only

Level 2 — 240V Dedicated Circuit

Wall Connector or NEMA 14-50

Speed Up to 44 miles of range per hour with a hardwired 48A Wall Connector; up to 30 miles per hour with a Mobile Connector on a NEMA 14-50 outlet

Equipment Dedicated 240V circuit — hardwired Wall Connector or NEMA 14-50 outlet

Best For Daily drivers, long commuters, households with 2+ Teslas, anyone who wants a full charge every morning

Cost Varies by panel capacity, run length, and installation method — written quote provided

Overnight Charge Restores 150–350+ miles — a full charge for every Tesla model, from Model 3 to Cybertruck

Installation Method

NEMA 14-50 Outlet or Hardwired Wall Connector

NEMA 14-50 Outlet + Mobile Connector

Plug-in flexibility

How It Works A dedicated 240V, 4-prong outlet is installed in your garage or exterior wall. Your Mobile Connector plugs into it with the 14-50 adapter.

Max Output 32A continuous through the Mobile Connector (50A circuit with GFCI protection required by NEC code)

Pros Charger is portable — take it with you if you move or upgrade vehicles. Outlet is usable for other 240V equipment.

Cons Plug connection can wear over time. Code-required GFCI breakers can cause nuisance tripping on some equipment. Slower than a hardwired Wall Connector.

Who It Is For Renters, owners planning to move within 3–5 years, and budget-conscious installations

"We install GFCI-rated 14-50 outlets correctly every time — and we select breakers that eliminate nuisance tripping issues." — Jorge

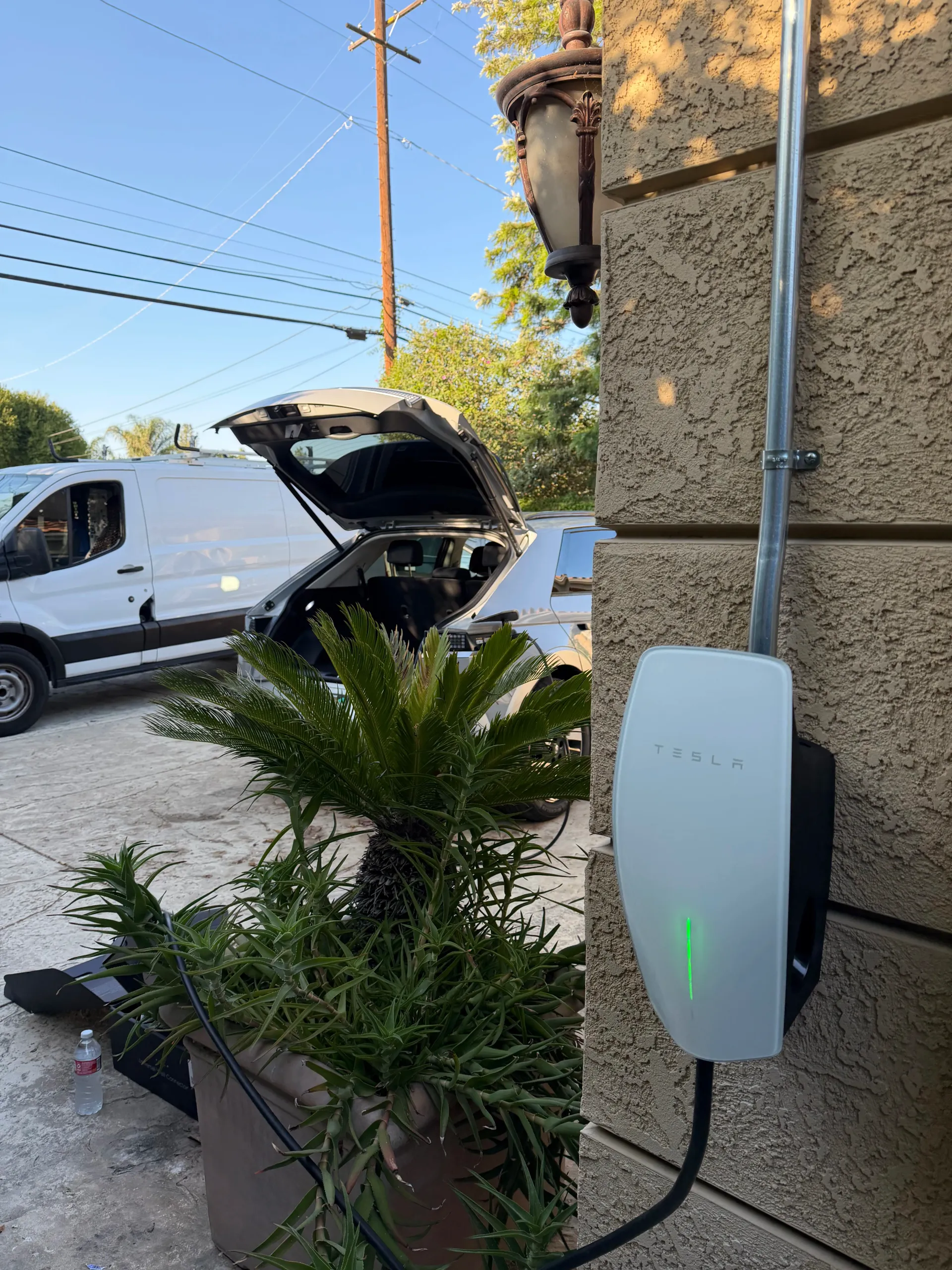

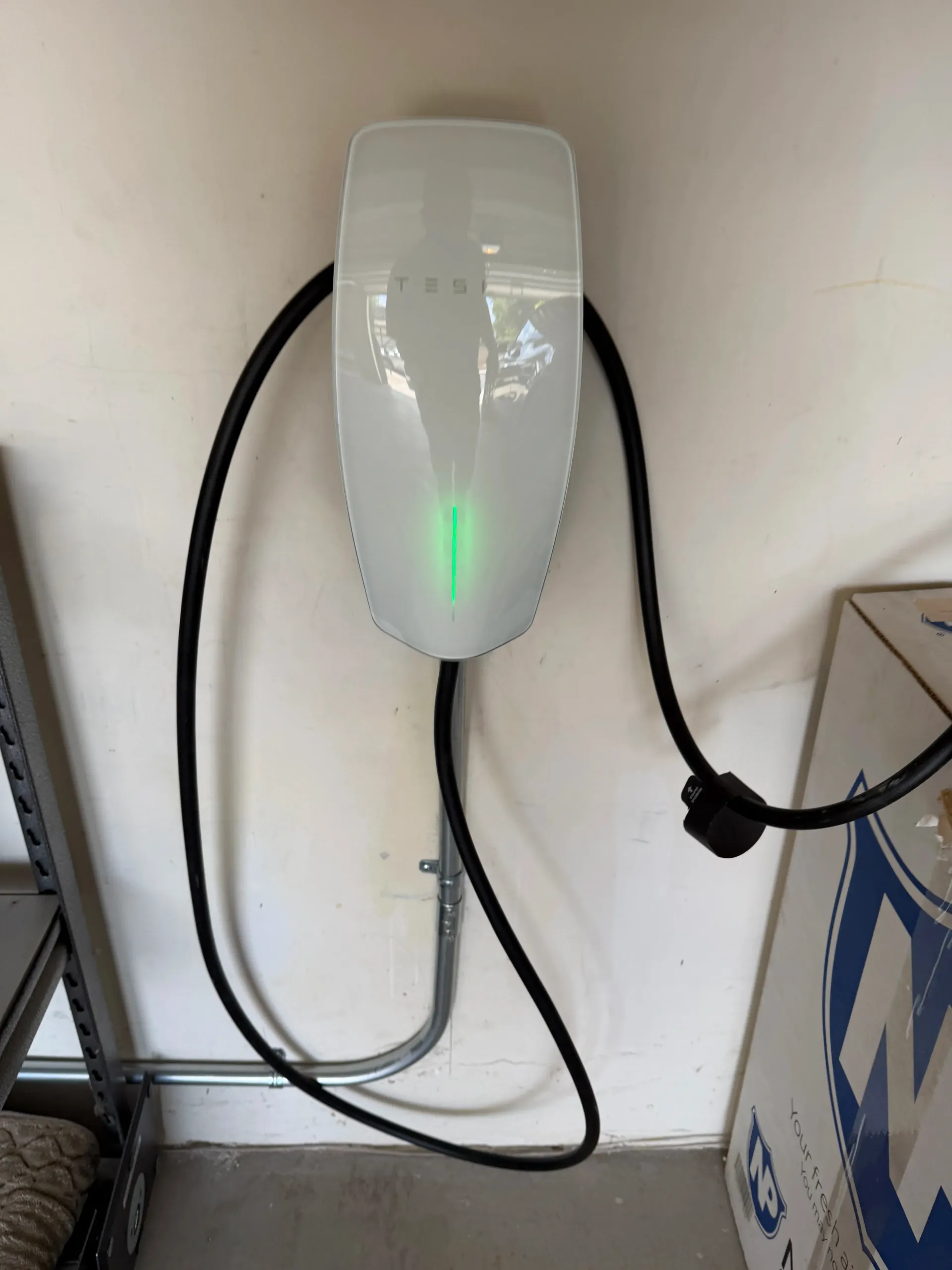

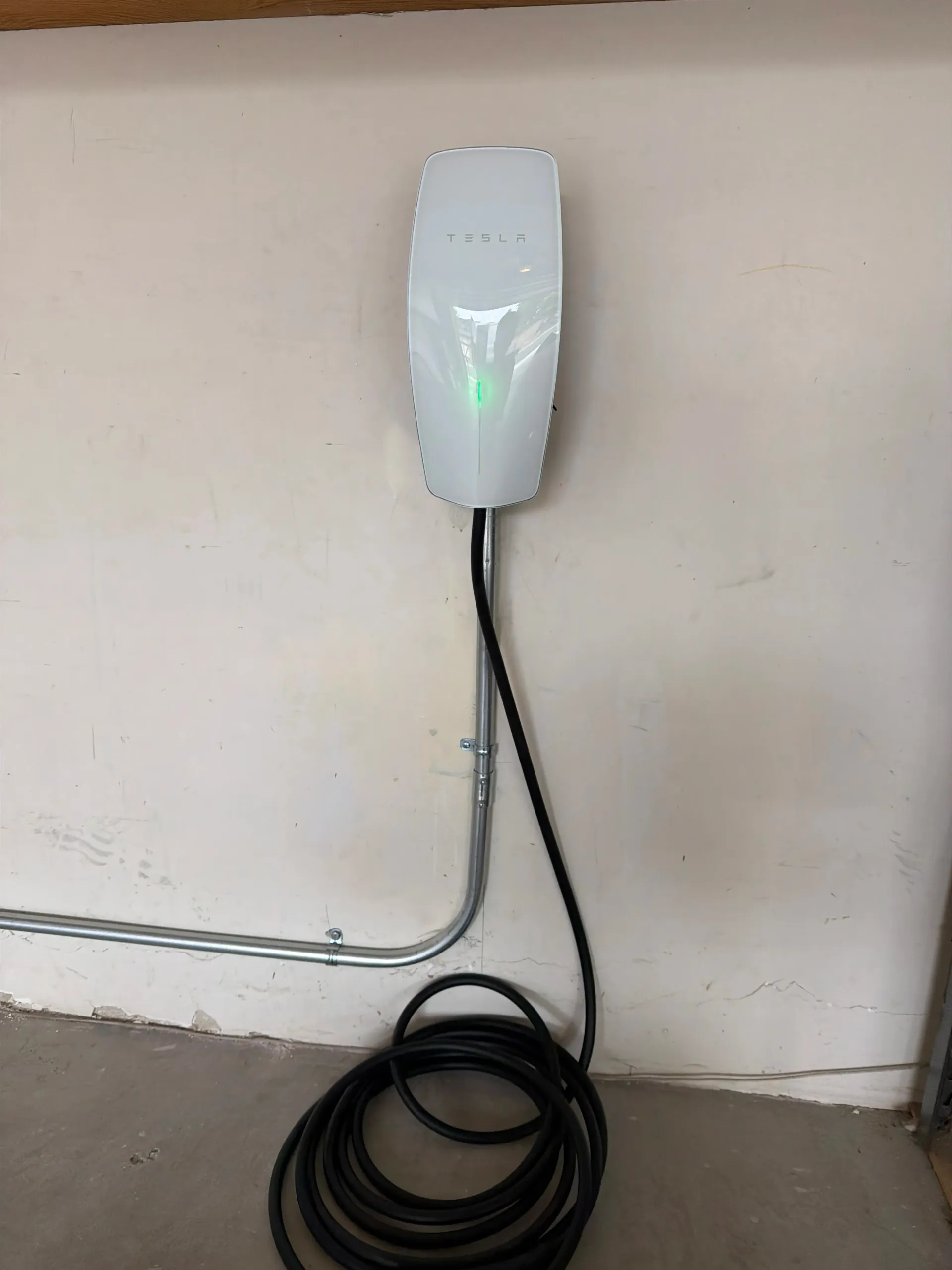

Hardwired Tesla Wall Connector

Tesla's recommended installation

How It Works The Wall Connector is permanently wired to your panel — no plug, no outlet. Sealed conduit to the mounting location, then commissioned and connected to Wi-Fi in the Tesla app.

Max Output 48A — the Wall Connector's full rated output, available only when hardwired on a 60A circuit

Pros Cleanest, safest installation and the fastest home charging Tesla offers. No connection point to wear out. Tesla app integration, over-the-air updates, and Power Sharing for up to six units.

Cons Cannot be unplugged and relocated without an electrician

Who It Is For Homeowners staying long-term, multi-Tesla households, ADUs with dedicated panels, and anyone who wants maximum speed with a factory-clean install

"For most Tesla owners in Los Angeles, we recommend the hardwired Wall Connector — it is the setup Tesla certified us to install, and it holds up better over years of daily use." — Jorge

Charging Speeds by Model

How Fast Does a Wall Connector Charge Your Tesla?

Charging speed depends on your Tesla model and the charger type. A hardwired 48A Wall Connector delivers the fastest home charging Tesla offers. Here is how each model performs across all three charging options.

Tesla Model	Wall Connector (48A)	NEMA 14-50 (32A)	120V Outlet (12A)
Model 3	Up to 44 miles of range per hour	Up to 30 miles of range per hour	3–5 miles of range per hour
Model Y	Up to 42 miles of range per hour	Up to 30 miles of range per hour	3–5 miles of range per hour
Model S	Up to 34 miles of range per hour	Up to 22 miles of range per hour	3–5 miles of range per hour
Model X	Up to 30 miles of range per hour	Up to 22 miles of range per hour	3–5 miles of range per hour
Cybertruck	Up to 11.5 kW (approx. 30 miles per hour)	Up to 7.6 kW (approx. 20 miles per hour)	3–5 miles of range per hour

Speeds are approximate and based on Tesla's published specifications for a hardwired Wall Connector on a 60A circuit (48A continuous), a Mobile Connector on a NEMA 14-50 outlet (32A continuous), and a standard 120V household outlet (12A). Actual speeds vary by battery state of charge, temperature, and vehicle software version.

Tesla Products We Install

Tesla Wall Connector Charging Products

As a Tesla Energy Certified Installer, LED Guys installs the complete Tesla home charging lineup — and helps you select the right setup for your panel capacity, vehicle, and budget before any purchase is made.

Wall Connector

Hardwired · Up to 48A · NACS

Tesla's flagship home charger — up to 44 miles of range per hour, 24-foot cable, Wi-Fi connectivity, and full Tesla app integration. Hardwired only at full 48A output. Commissioning is done through the Tesla One app, including Wi-Fi setup, access controls, and software updates.

Universal Wall Connector

Hardwired · Up to 48A · NACS + J1772

Same 48A performance with a built-in J1772 adapter — charges Teslas and every other EV brand. The right choice for mixed households. Supports the same Power Management features, access controls, and Tesla app integration as the standard Wall Connector. Learn more: Installing a Wall Connector.

Mobile Connector + NEMA 14-50

Plug-In · Up to 32A

Tesla's portable charging solution paired with a properly installed GFCI-protected NEMA 14-50 outlet — up to 30 miles of range per hour.

Not sure whether you need the Wall Connector, the Universal Wall Connector, or a NEMA 14-50 with your Mobile Connector? Jorge will assess your panel, vehicle, and driving habits during the written quote and recommend the right setup. LED Guys also installs all other major charger brands — ChargePoint, Emporia, Wallbox, JuiceBox, Grizzl-E, and more. No upsells, no pressure.

Compatibility

Tesla Chargers Work With Other Cars

Tesla's charging connector — NACS — is now the North American charging standard, published as SAE J3400 and adopted across the auto industry. That means a Tesla charger installed at your Los Angeles home or business is no longer just for Teslas: nearly every major automaker has joined the standard, and new EVs from other brands are now shipping with NACS charge ports built in.

One charger for every EV in your garage

The Tesla Universal Wall Connector charges any EV out of the box — full 48A NACS charging for Teslas plus a built-in J1772 connector for everything else. The standard Wall Connector charges Teslas natively and other brands via a NACS adapter, and vehicles from NACS-equipped model years plug straight in with no adapter at all.

The same applies to a NEMA 14-50 outlet: it powers the Tesla Mobile Connector today and any other brand's plug-in charger tomorrow, so the circuit LED Guys installs keeps its value even if you switch vehicles. Jorge confirms connector compatibility for every vehicle in your household during the written quote — before you buy any equipment.

Automakers on the NACS standard

The following manufacturers have adopted NACS (SAE J3400) and gained access to Tesla's charging network. Some newer models ship with a native NACS port built in at the factory; earlier models use a manufacturer-provided adapter to connect to NACS stations.

Vehicles with native NACS ports

These models plug directly into a Tesla Wall Connector with no adapter:

Hyundai Ioniq 5, Ioniq 9 · Kia EV6, EV9 · Rivian R1T, R1S · Lucid Gravity · Cadillac Optiq · Genesis Electrified GV70 · Nissan Leaf (2025+) · Toyota bZ (2025+) · Subaru Solterra (2025+)

Manufacturers with NACS adapter access

These brands have adopted NACS and provide adapters for their existing CCS-equipped models. Newer model years from these manufacturers are transitioning to native NACS ports:

Acura · Audi · BMW · Chevrolet · Ford · GMC · Honda · JLR · Mercedes-Benz · Polestar · Porsche · Stellantis · Volkswagen · Volvo

This list continues to grow as more automakers adopt the NACS standard. If you own a non-Tesla EV and want to confirm compatibility before installation, the Tesla Universal Wall Connector charges every brand out of the box with its built-in J1772 connector — no adapter needed regardless of model year.

Electrical Requirements

What Your Electrician Needs to Install a Tesla Wall Connector

The Tesla Wall Connector is a hardwired Level 2 charger that connects directly to your electrical panel. Before installation, your electrician verifies your panel capacity, runs a dedicated circuit, and commissions the unit through the Tesla One app. Here is what the job involves.

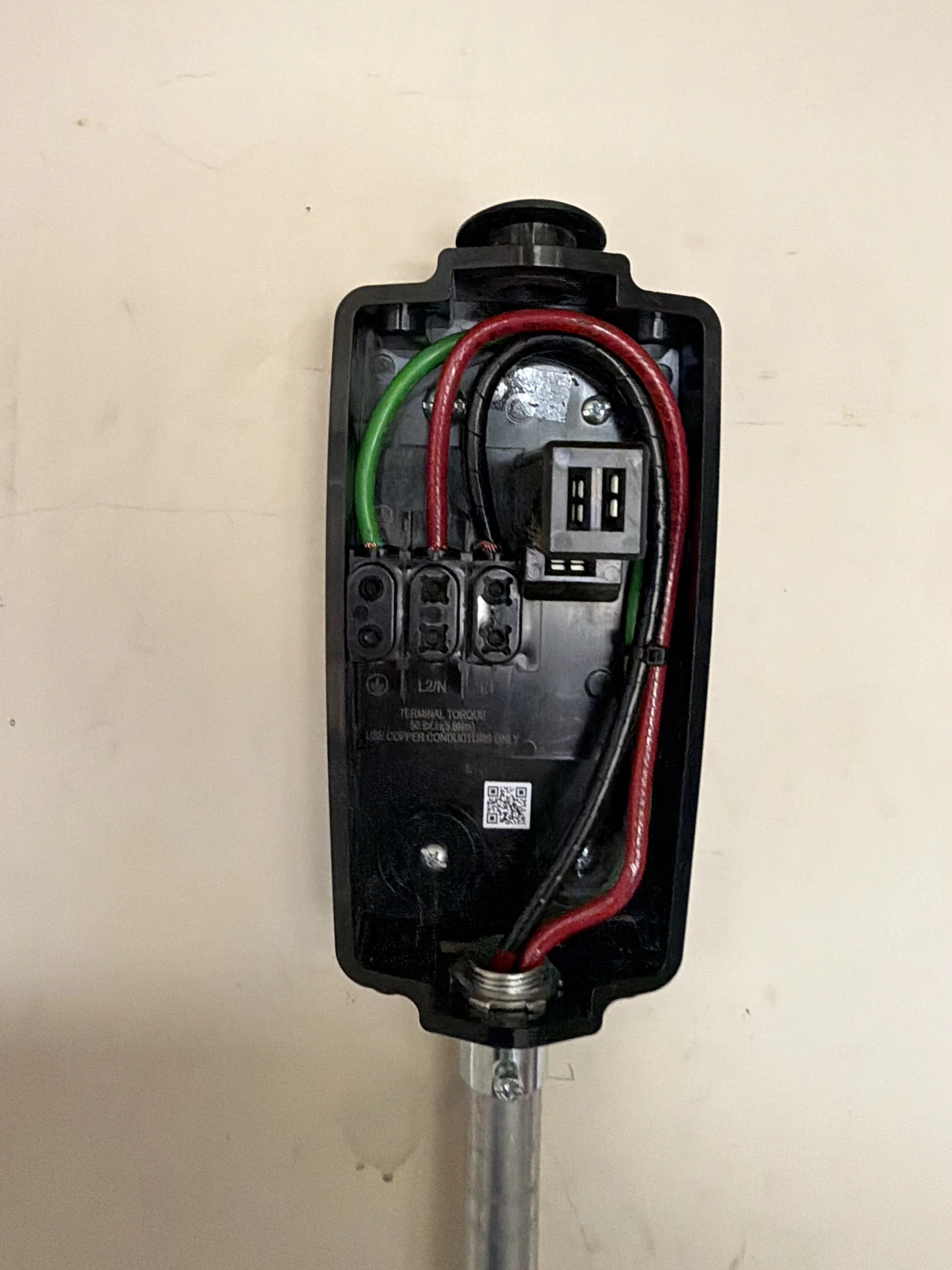

Dedicated circuit and wire sizing

The Wall Connector draws up to 48 amps and requires a dedicated 60-amp circuit breaker per NEC 625.40. The wire run uses 6 AWG copper conductors (THHN/THWN in conduit or NM-B where code allows). If the run from your panel to the garage exceeds 100 feet, your electrician may upsize to 4 AWG to account for voltage drop. The circuit must be protected by a GFCI breaker per NEC 625.54.

Adjustable amperage for any panel

The Wall Connector's amperage is adjustable through rotary dip switches during installation. Your electrician can set it to 12, 16, 24, 32, 40, or 48 amps depending on your panel's available capacity. A homeowner with a 100-amp panel and limited headroom can run the charger at 24 amps on a 30-amp breaker with 10 AWG wire — still delivering roughly 19 miles of range per hour, enough to fully charge most Teslas overnight.

Panel capacity: 100A vs. 200A

Most Los Angeles homes built after 2000 have a 200-amp main panel with enough spare capacity for a 60-amp charger circuit. Older homes — common in neighborhoods like Silver Lake, Echo Park, and Highland Park — often have 100-amp or 125-amp panels that need a service upgrade before adding a high-draw appliance. Jorge performs a full NEC Article 220 assessment during the written quote visit and includes the panel upgrade in the same project when needed.

Wi-Fi and the Tesla One app

After the physical wiring is complete, your electrician commissions the Wall Connector through the Tesla One app. The unit connects to your home Wi-Fi network and registers to your Tesla account. Once commissioned, you can set charging schedules, monitor energy usage, manage access controls, and receive firmware updates — all from your phone. Wi-Fi signal in the garage needs to be strong enough for a reliable connection; if it is weak, a mesh Wi-Fi extender solves the problem before installation day.

Where should the Wall Connector be mounted?

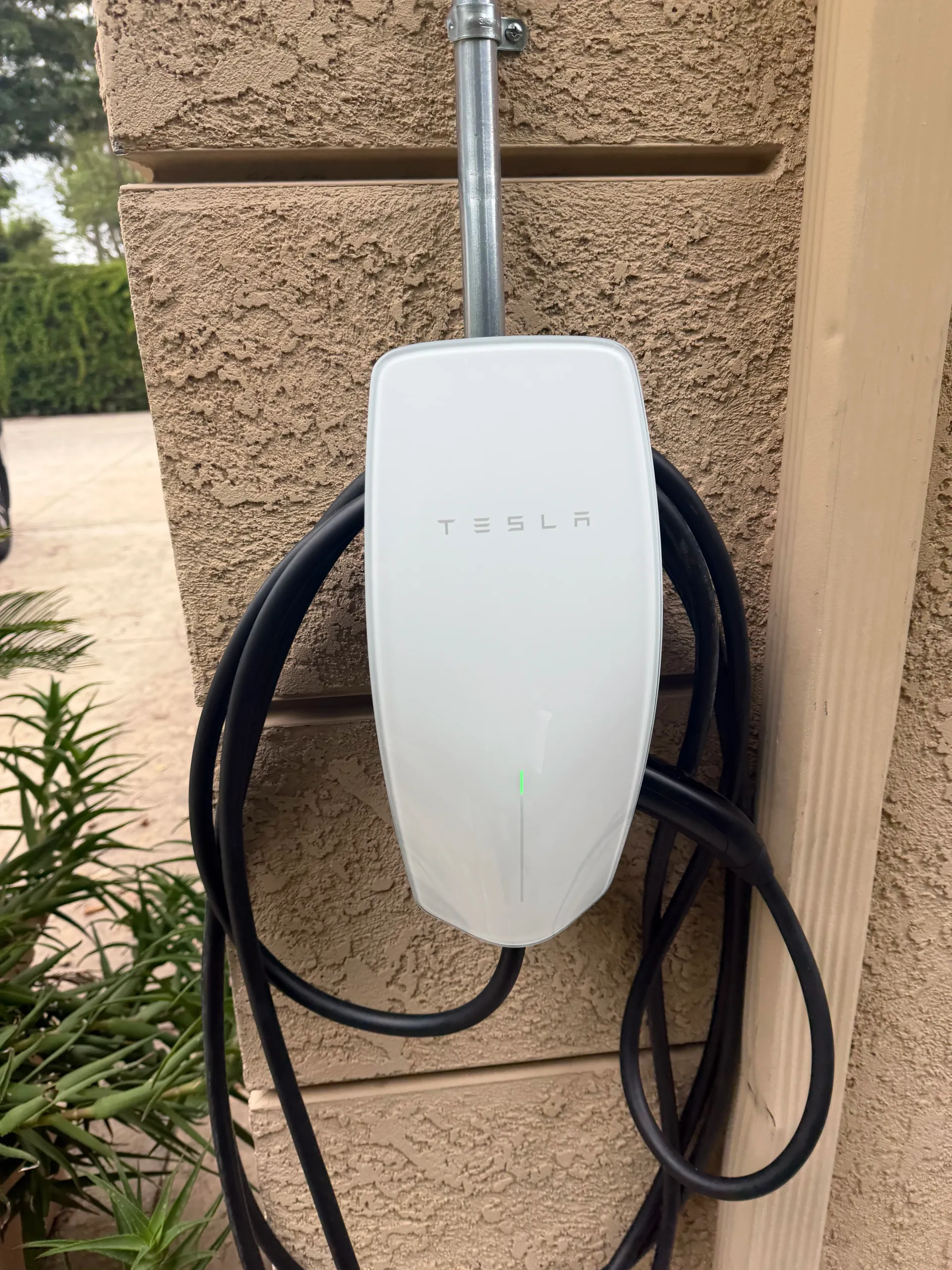

The Wall Connector mounts indoors or outdoors — it carries a NEMA 3R rating for weather resistance. Most Los Angeles homeowners mount it on the garage wall near the charge port side of the vehicle. The ideal mounting height is 48 inches from the floor to the center of the unit, with the charge cable reaching the port without stretching across the vehicle. If your electrical panel is on the opposite side of the house, your electrician runs conduit along the exterior or through the attic to reach the mounting location.

Permits and inspection

Every Tesla Wall Connector installation in Los Angeles requires an electrical permit from LADBS. LED Guys pulls the permit before any work begins, and schedules the LADBS final inspection once the installation is complete. The inspector verifies the circuit breaker sizing, wire gauge, GFCI protection, grounding, and proper mounting. After the inspection passes, you receive the signed-off permit card for your records — important documentation if you ever sell your home.

Commercial

Wall Connector for Business

Tesla's commercial Wall Connector program lets businesses join the Tesla charging network by installing Wall Connectors on site. The units charge Teslas and all other EVs — and with millions of EV drivers on Los Angeles roads, convenient on-site charging brings more visitors, tenants, and employees to your property.

Apartments

Keep and attract tenants with overnight access to on-site charging — the amenity LA renters with EVs now search for first.

Workplaces

Give employees a place to charge during the workday and support your company's sustainability goals.

Hospitality

Offer charging to short- and long-term guests — a deciding factor for EV drivers choosing where to stay.

Fleet

Keep your electric fleet charged and ready with dedicated, load-managed charging positions.

Retail

Attract customers who shop while they charge — and stay longer because of it.

Tesla pairs commercial projects with Certified Installers

When a business requests a commercial Wall Connector quote from Tesla, Tesla pairs the project with a Tesla Certified Installer. LED Guys holds that certification — so Los Angeles property owners can work directly with a local, C10 licensed certified installer from day one, from site assessment through final inspection.

Commercial installations are engineered differently than a single-home charger: Power Sharing lets up to six Wall Connectors intelligently share one circuit, load management protects your building's electrical capacity, and multi-unit conduit runs, subpanels, and service upgrades are all designed to your site. LED Guys handles the full commercial scope — load calculations, LADBS commercial permits, LADWP service coordination, installation, and commissioning.

Request a Commercial Quote

Common Questions

What Los Angeles Tesla Owners Ask Before Booking

Will my electrical panel handle a Wall Connector?

A full 48A Wall Connector needs a dedicated 60A circuit. Most 200A panels have the headroom, but many pre-1990 LA homes still run 100A or 125A panels. Jorge performs a full NEC Article 220 load calculation during the written quote — and if an upgrade is needed, LED Guys handles the complete 200A service upgrade as part of the same project.

How long does the installation take?

The physical installation takes 2–4 hours, including commissioning in the Tesla app. LADBS permit processing typically adds 1–3 business days before installation, and the final inspection follows shortly after. Total timeline from first call to sign-off is usually under two weeks — often faster.

Do I need a permit for a Tesla charger in Los Angeles?

Yes — a permit is required under NEC Article 625 for all dedicated-circuit EV charger installations. In the City of Los Angeles, the permit authority is LADBS. LED Guys pulls all permits before work begins. Unpermitted installs can void homeowner's insurance and create disclosure liability when you sell.

Wall Connector or NEMA 14-50 with the Mobile Connector?

For most homeowners staying long-term, the hardwired Wall Connector is the better choice: 48A output, Tesla app integration, and no plug to wear out. A NEMA 14-50 with the Mobile Connector is the right call for renters or owners planning to relocate. Jorge gives you the honest recommendation — not the one that costs more.

Can you install Wall Connectors at my business?

Yes — LED Guys installs commercial Wall Connectors for apartments, workplaces, hotels, fleets, and retail throughout Los Angeles. Tesla's commercial program pairs businesses with Tesla Certified Installers, and LED Guys holds that certification. Power Sharing supports up to six units per circuit, and Jorge handles the full commercial permit and load-management scope.

We have a Tesla and a non-Tesla EV — what should we install?

The Tesla Universal Wall Connector is built exactly for this: full 48A NACS charging for your Tesla plus an integrated J1772 connector for any other brand — Ford, Rivian, BMW, Hyundai, Kia, and more. One certified installation covers the whole garage.

What Clients Say

5.0 Stars — Verified Google Reviews

★★★★★

"I recently hired Jorge to install LED strip lights for my custom cabinets, and I couldn't be happier. Professional, punctual, and incredibly skilled. The wiring was neatly hidden and the setup works seamlessly. Highly recommend for anyone looking for top-notch electrical work."

— AAdesign Firm

★★★★★

"Very knowledgeable and punctual. Easy to work with and reasonably priced. I will definitely use them in the future for all my lighting and electrical needs."

— Yacoub Kawaja

★★★★★

"Jorge is the man for any electrical work. He completed lighting installations for my shop and did an excellent job. Professional, efficient, highly satisfied. I highly recommend Jorge for any electrical issues or projects."

— Zubair Kohbandi · Local Guide

★★★★★

"You can't ask for a better electrician than George. He's reliable, communicative, on time, reasonably priced and a pleasure to work with. I've called George for multiple projects, including panel upgrades, recess lighting and even technical issues and he has performed like a champion every time."

— Paul H

★★★★★

"I've worked with many electricians over the years, and he's by far the best. His prices are great, he's always on time, reliable, and gets the job done without any issues. If you need an electrician you can truly count on, reach out to him — you won't be disappointed."

— Bardia Danesh

★★★★★

"LED Guys were awesome! They replaced and repaired my open sub panel quickly and made the whole process super easy. Friendly, professional, and explained everything in a way that made sense. Great to have peace of mind knowing the job was done right."

— Ryan Schneider

Read All Reviews on Google

General Contractors in Van Nuys

Common Questions

Frequently Asked Questions

What panel capacity do I need for a Tesla Wall Connector in Los Angeles?

A hardwired Tesla Wall Connector at its full 48A output requires a dedicated 60A circuit, while a NEMA 14-50 installation for the Mobile Connector requires a 50A GFCI-protected circuit. Your panel must have sufficient headroom above existing loads to support the added circuit. Most 200A panels in Los Angeles can accommodate a Wall Connector without an upgrade; many pre-1990 homes with 100A or 125A panels require a service upgrade first. Jorge performs the official NEC Article 220 load calculation during the site visit — and the Wall Connector's amperage can also be commissioned at a lower setting to fit tighter panels.

What is the permit process for a Tesla charger installation in Los Angeles?

Tesla charger installations in the City of Los Angeles require a permit from the Los Angeles Department of Building and Safety (LADBS) under NEC Article 625. LED Guys submits the permit application, provides all required documentation, and schedules the final inspection on your behalf. Typical permit processing is 1–3 business days for standard residential projects. You receive all permit documentation at project completion for your insurance and resale records.

What does it mean that LED Guys is a Tesla Certified Installer?

The Tesla Energy Certified Installer designation identifies professionals who have completed Tesla Energy training, possess extensive technical knowledge of Tesla Energy products, and deliver the highest-quality installations for Tesla customers. LED Guys holds this certification for the Tesla Wall Connector and Universal Wall Connector. In practice it means your charger is installed to Tesla's own specifications, commissioned correctly in the Tesla One app with Wi-Fi, access controls, and software updates configured, and set up for features like Power Sharing and Dynamic Power Management — not just wired to a breaker. Find a Tesla Certified Installer at tesla.com/support/certified-installers.

Should I buy the Wall Connector, the Universal Wall Connector, or use my Mobile Connector?

If every vehicle in your household is a Tesla, the standard Wall Connector delivers the fastest home charging at 48A with full app integration. If you have or plan to add a non-Tesla EV, the Universal Wall Connector adds a built-in J1772 connector for the same 48A performance. The Mobile Connector on a professionally installed NEMA 14-50 outlet is the budget and flexibility option at up to 32A. Jorge reviews your vehicles, panel, and plans during the written quote and recommends the right unit before you purchase anything.

Are Tesla chargers compatible with other cars like Ford, Rivian, or BMW?

Yes. Tesla's NACS connector is now the North American charging standard (SAE J3400), and nearly every major automaker has adopted it — including Acura, Audi, BMW, Ford, General Motors, Genesis, Honda, Hyundai, JLR, Kia, Lucid, Mercedes-Benz, Nissan, Polestar, Porsche, Rivian, Stellantis, Subaru, Toyota, Volkswagen, and Volvo. Newer models from these brands ship with NACS ports and plug into a Tesla charger directly; earlier models use a manufacturer-provided or aftermarket NACS adapter. For guaranteed out-of-the-box compatibility with every brand, the Tesla Universal Wall Connector includes a built-in J1772 connector alongside NACS — one installation covers any EV you own now or buy later.

How much does a Tesla charger installation cost in Los Angeles?

Costs vary based on panel capacity, conduit run length, wall material, and installation method. A Wall Connector mounted next to the panel in a garage costs less than a long exterior conduit run to a driveway or detached garage. If a panel upgrade is required, that adds to the project cost. Jorge provides a fixed-price written estimate during the site visit — no surprise add-ons, no change orders after the quote is signed.

Can LED Guys install Wall Connectors for my apartment building, hotel, or business?

Yes. Tesla's Wall Connector for Business program lets apartments, workplaces, hospitality properties, fleets, and retail locations join the Tesla charging network with on-site Wall Connectors that charge Teslas and all other EVs. Tesla pairs commercial projects with Tesla Certified Installers — a certification LED Guys holds. Jorge handles the full commercial scope in Los Angeles: site assessment, NEC load calculations, Power Sharing configuration for up to six units per circuit, LADBS commercial permits, LADWP service coordination, installation, and commissioning.
